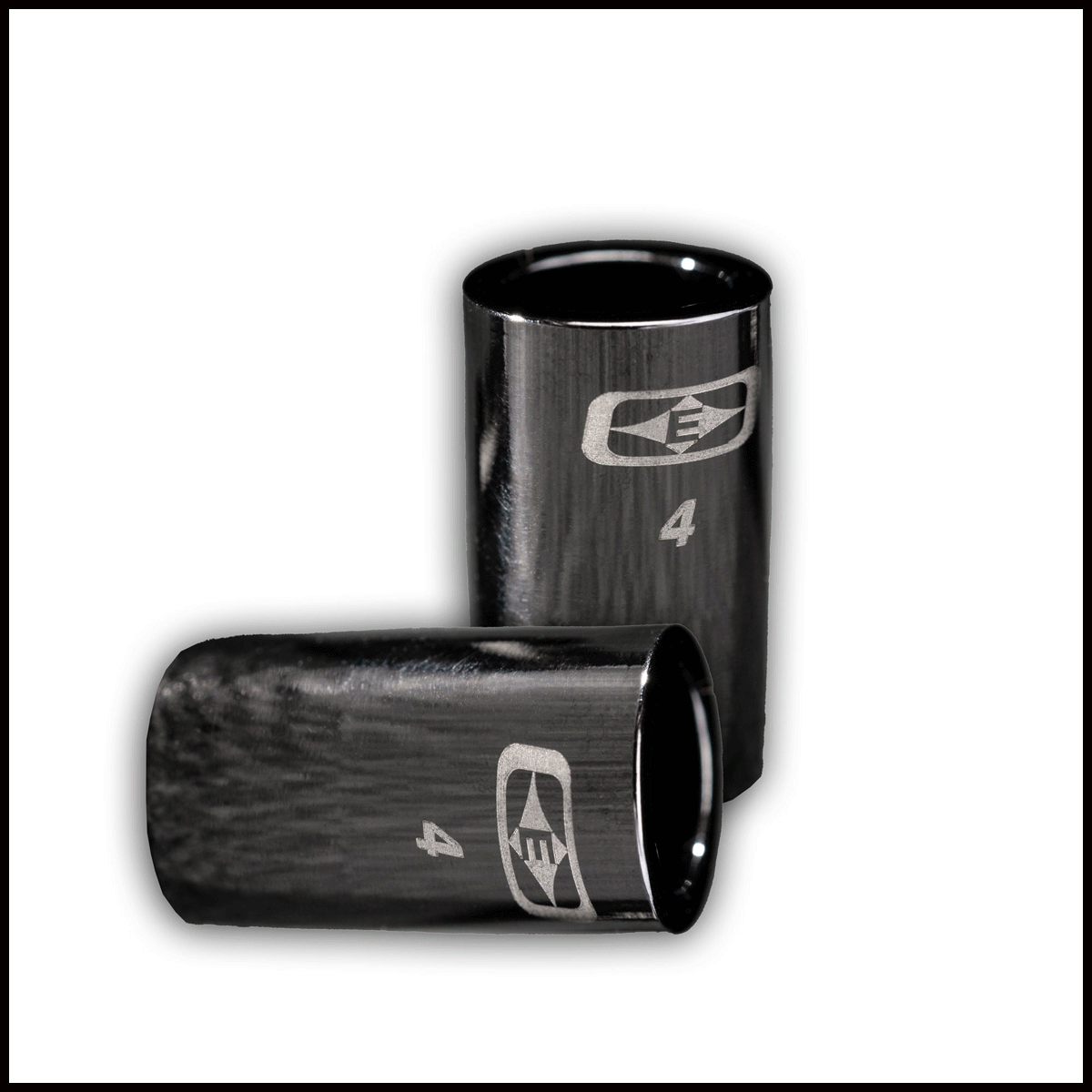

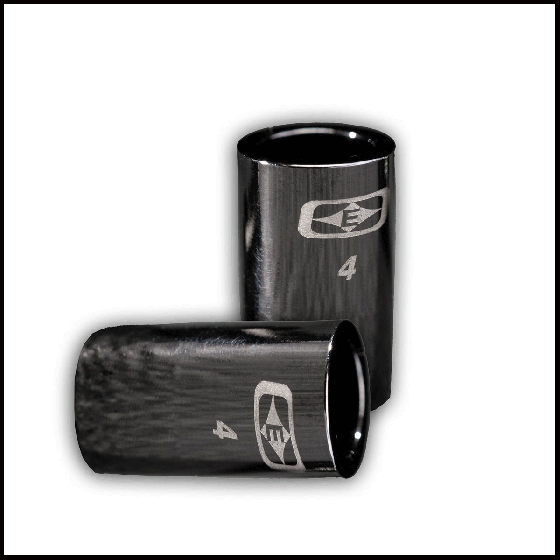

Enhance the impact strength of your arrows with Easton 5mm Match Grade HIT Collars. Designed based on feedback from Easton's top shooters and pro shops, these collars are crafted from hardened stainless steel to provide superior durability and precision for your arrows using the HIT system. Perfect for a range of 5mm Easton arrows, these collars are included with Easton Match Grade 5mm arrows and are available separately for many 5mm arrows on the market.
Key Features of Easton 5mm Match Grade HIT Collars:
Fitment: Designed for use with 5mm Easton arrows, including the Easton Sonic, Axis, FMJ, and Carbon Legacy series. Check the sizing chart for specific collar fits by arrow model.
Note: Sonic 6.0 arrows require brass inserts to use Match Grade HIT Collars. Refer to the size chart below for more information.
Available Sizes: 6 Sizes to fit a range of Easton 5mm arrows.
Arrow | Arrow OD | Collar ID | Weight (gr) | Collar # |
---|---|---|---|---|
Easton Sonic 6.0 250 | 0.291 | N/A | N/A | N/A |
Easton Sonic 6.0 300 | 0.286 | 0.29 | 15 | *6 |
Easton Sonic 6.0 340 | 0.279 | 0.29 | 15 | *6 |
Easton Sonic 6.0 400 | 0.275 | 0.29 | 15 | *6 |
Easton Sonic 6.0 500 | 0.273 | 0.29 | 15 | *6 |
Easton Sonic 6.0 600 | 0.268 | 0.29 | 15 | *6 |
Easton 5mm Axis 200 | 0.286 | 0.29 | 15 | 6 |
Easton 5mm Axis 260 | 0.28 | 0.282 | 16 | 5 |
Easton 5mm Axis 300 | 0.275 | 0.277 | 17 | 4 |
Easton 5mm FMJ 300 | 0.273 | 0.277 | 17 | 4 |
Easton 5mm Carbon Legacy 340 | 0.272 | 0.277 | 17 | 4 |
Easton 5mm FMJ 250 | 0.269 | 0.271 | 17 | 3 |
Easton 5mm FMJ 340 | 0.269 | 0.271 | 17 | 3 |
Easton 5mm Axis 340 | 0.267 | 0.271 | 17 | 3 |
Easton 5mm Carbon Legacy 400 | 0.267 | 0.271 | 17 | 3 |
Easton 5mm Axis 400 | 0.264 | 0.266 | 19 | 2 |
Easton 5mm FMJ 400 | 0.263 | 0.266 | 19 | 2 |
Easton 5mm Carbon Legacy 500 | 0.261 | 0.266 | 19 | 2 |
Easton 5mm Axis 500 | 0.256 | 0.258 | 21 | 1 |
Easton 5mm Carbon Legacy 600 | 0.256 | 0.258 | 21 | 1 |
Easton 5mm Carbon Legacy 700 | 0.254 | 0.258 | 21 | 1 |
Easton 5mm Axis 600 | 0.253 | 0.258 | 21 | 1 |
