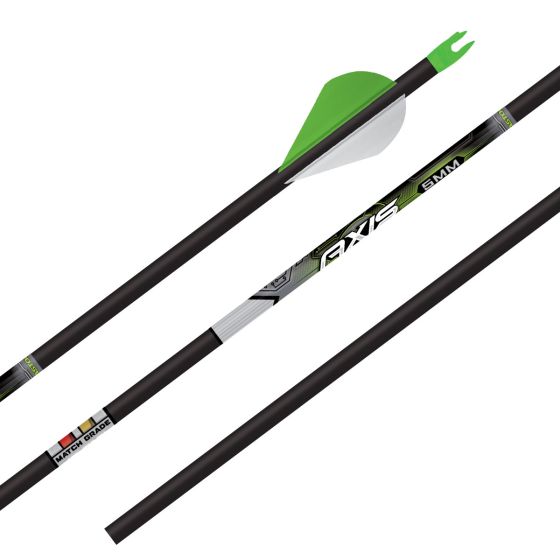

The Easton Axis 5MM Match Grade Arrows are the hands-down choice for hunters and target archers looking for unrivaled performance. These all-carbon arrows are designed for ultimate speed, penetration, and precision. With a small diameter and high-strength carbon-composite fibers, the Axis 5MM arrows deliver enhanced accuracy and deeper penetration with every shot.
Key Features:
Specifications:
Sold Separately: 5mm Brass HIT Break-off 8-32 Insert (50-75 grains), 5mm Aluminum 8-32 Half-out (25 grains), and 5mm Steel 8-32 Half-out (75 grains).
Sold Separately: 5mm Brass HIT® 8-32 Break-Off Insert (50-75 grains), 5mm Steel 8-32 Half-Out (75 grains), and 5mm Match Grade HIT Collar (13-21 grains).
Size | Shaft Weight (GPI) | Spine @ 28″ Span (Deflection in inches) | Stock Length (Inches) | Field Point (O.D. Inches) | Match Grade HIT Collar | Broadhead Adapter Ring Size (5 grains) | O.D. (Inches) | 5mm Half Out (Size) |
---|---|---|---|---|---|---|---|---|
600 | 7.2 | 0.600 | 30.5 | 17/64 | #1 | BAR 3 | 0.253 | #1 |
500 | 8.1 | 0.500 | 31 | 17/64 | #1 | BAR 3 | 0.258 | #1 |
400 | 9.0 | 0.400 | 31.5 | 17/64 | #2 | BAR 4 | 0.264 | #2 |
340 | 9.5 | 0.340 | 32 | 9/32 | #3 | BAR 5 | 0.267 | #2 |
300* | 10.7 | 0.300 | 32.5* | 9/32 | #4 | BAR 6 | 0.275 | #2 |
260* | 11.5 | 0.260 | 34* | 9/32 | #5 | BAR 6 | 0.280 | #2 |
200* | 12 | 0.200 | 34* | 9/32 | #6 | BAR 6 | 0.280 | #2 |
Retail Only | No |
---|---|
Straightness (+/-) | 0.001" |
